Wet Scrubber Fume Cupboards

Designed For High-Volume Acid Based Applications

100% corrosion-proof fume cupboards for heavy chemicals. Ideal for Acid digestion using HF (Hydrofluoric Acid) and where reducing environmental impact is paramount.
Download Datasheet
Wet Scrubber Fume Cupboards

Corrosion Resistance Guaranteed

Wet scrubber fume cupboards increase user safety and reduce toxic chemical emissions. They achieve this by cleaning polluted air using a scrubbing solution before it's exhausted into the atmosphere. Scrubbed fume cupboards are a good option for facilities using high volumes of chemicals like hydrofluoric acid. The vapour produced from heating these chemicals creates highly corrosive environments, so the cabinets are usually manufactured from polypropylene.

At TION Global, we manufacture our products using 100% medical-grade welded polypropylene. This corrosion-proof material extends the average life of our units by up to ten years. Combine this with our integrated scrubbing system and auto-dosing technology, and you are guaranteed a product that's built to last.

Product Benefits

Corrosion Proof

Corrosion Proof

Constructed with virgin medical grade welded polypropylene.
Integrated Scrubber

Integrated Scrubber

Scrubbing efficiency exceeds 99% of chemical concentrations.
Safe & Compliant

Safe & Compliant

Airflow alarmed to ensure British and European safety compliance. EN 14175 certified.
Custom Size & Spec

Custom Size & Spec

Designed to facilitate your internal laboratory processes.
Wet Scrubber VS Wash Down Fume Cupboards
Wet-Scrubber Fume Cupboards neutralise toxic vapours from the airstream before exhausting them into the environment. Wash-Down Fume Cupboards prevent Perchloric acid crystallisation using water jets fitted behind the rear baffle plate. TION specialise in both product types, with each range supported by a team of qualified engineers.
Wet Scrubber VS Wash Down Fume Cupboards

Reducing Your Environmental Impact

Scrubbed fume cupboards prevent hazardous fumes and particles from escaping into the environment. Significantly reducing the untreated chemical wastage produced by laboratories and manufacturing facilities. Our cabinets capture chemical vapours using a media mist within the airstream before neutralising the substance inside a treated recirculation tank.

This technology conforms to modern environmental practices and reinforces safe working procedures and ethical thinking. Our scrubbing efficiency typically exceeds 99% of chemical concentrations. Helping organisations track their annual emissions and operate in accordance with their ESG policy.

Product Features

Wet Scrubber Fume Cupboard FrontWet Scrubber Fume Cupboard SideWet Scrubber Fume Cupboard Duct ConnectionWet Scrubber Fume Cupboard RearWet Scrubber Fume Cupboard WorkspaceWet Scrubber Fume Cupboard LightingWet Scrubber fume Cupboard Table TopWet Scrubber Fume Cupboard Pipe WorkWet Scrubber Fume cupboard SprinklersWet Scrubber Fume Cupboard Scrubbing System Close UpWet Scrubber Fume Cupboard Scrubbing SystemWet Scrubber Fume Cupboard Scrubbing Graphic
  • Wet Scrubber Fume Cupboard Front
  • Wet Scrubber Fume Cupboard Side
  • Wet Scrubber Fume Cupboard Duct Connection
  • Wet Scrubber Fume Cupboard Rear
  • Wet Scrubber Fume Cupboard Workspace
  • Wet Scrubber Fume Cupboard Lighting
  • Wet Scrubber fume Cupboard Table Top
  • Wet Scrubber Fume Cupboard Pipe Work
  • Wet Scrubber Fume cupboard Sprinklers
  • Wet Scrubber Fume Cupboard Scrubbing System Close Up
  • Wet Scrubber Fume Cupboard Scrubbing System
  • Wet Scrubber Fume Cupboard Scrubbing Graphic
Integrated Wet Scrubber

Integrated Wet Scrubber

Cupboard mounted scrubber system removes harmful vapours, gases and particulates from the airstream.

Wet Scrubber Internal System

How It Works

The TION scrubbing system uses a bed of 3D shapes called pall rings. These rings are sprayed with a fine mist of water and caustic soda. The pall rings give maximum surface area for fumes to adhere to as the exhaust air passes through them. A water tank underneath the work surface recirculates the media and has an auto top-up of fresh water.

Auto-Dosing Option

Auto-Dosing Option

Ability to add caustic soda to the scrubbing system to reduce the need for manual top ups.

Wet Scrubber Fume Cupboard Scrubbing System.

Scrubbing System

Adding caustic soda into the fume cupboard's water tank neutralises harmful toxins captured via the sprinklers and scrubbing media. Auto-dosing removes the need for manual top-ups, ensuring your scrubbing system operates at maximum efficiency.

Optional pH Monitoring

Optional pH Monitoring

Real-time monitoring of scrubber tanks to ensure contents is pH neutral before disposal.

Wet Scrubber Fume Cupboard Tank Interior.

Waste Management

Chemical waste should be disposed of carefully.

Our solution ensures your pH level is accurate, consistent and reliable. As a rule, you should always aim for 7pH before disposal. However, you may find your organisation already has a robust disposal procedure in place. Always check with the appropriate authority first.

100% Polypropylene Carcass

100% Polypropylene Carcass

We'll build your cabinets with a material that never corrodes, offering ultimate flexibility in design.

Wet Scrubber Technical Drawings

Construction

The ideal material for constructing fume cupboards is polypropylene. In this case, virgin medical grade welded polypropylene. It offers a much higher chemical resistance than other materials. We also manufacture steel fume cabinets, but the shelf life is considerably shorter.

Learn more about the advantages of polypropylene v traditional materials.

Worksurface Options

Worksurface Options

Depending on your requirements, we design a worksurface to suit, with multiple types available.

Work Surface Airflow

Worksurfaces

Confused about which worksurface you need? We offer the following:

  • Polypropylene
  • Trespa
  • Ceramic
  • Stainless Steel

Typically, we would only recommend polypropylene on a wet scrubber fume cupboard thanks to its corrosion-proof properties. However, we understand that our customer's requirements vary. If you have a question regarding the options listed above, contact our technical support team for more information.

Intuitive User Interface

Intuitive User Interface

All controls in are one place with our user-friendly interface, intuitive calibration, and night setback mode.

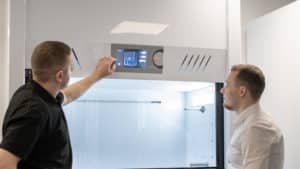

Control Panel

9" Digital Control Panel

Our upgradable 9" digital control panel is touch-screen ready, creating a seamless user experience. The programmable software tracks air inflow and downflow, annual commissioning dates and filter replacements. It's also equipped with a state-of-the-art red-light alarm system. This vital safety function visually notifies the operator if an airflow drop is detected.

When used with our energy-efficient VAV (Variable Air Volume) technology, it also notifies the user of a sash height readjustment. In short, it conserves energy, increases user safety and creates a hassle-free working environment.

Contact our team for a live product demonstration today.

Product Specification

Models
Documents
FAQ's
Wet Scrubber Fume Cupboard
Spec/ModelPPFC1200-WSPPFC1500-WSPPFC1800-WSPPFC2000-WSPPFC2500-WS
External Size WxDxH (mm)1200 x 980 x 2370 mm
47.3x 38.6 x 93.3”
1500 x 980 x 2370 mm
59 x 38.6 x 93.3”
1800 x 980 x 2370 mm
70.9 x 38.6 x 93.3”
2000 x 980 x 2370 mm
78.7 x 38.6 x 93.3”
2500 x 980 x 2370 mm
98.4 x 38.6 x 93.3″
Workspace: Rear Baffle Plate To Aerofoil WxDxH (mm)1000 x 580 x 1000 mm
39.4 x 22.8 x 39.4”
1300 x 580 x 1000 mm
51.2 x 22.8 x 39.4”
1600 x 580 x 1000 mm
63 x 22.8 x 39.4”
1800 x 580 x 1000 mm
70.8 x 22.8 x 39.4”
2300 x 580 x 1000 mm
90.5 x 22.8 x 39.4″
Stand Dimensions WxDxH (mm)1200 x 950 x 800 mm1500 x 950 x 800 mm1800 x 950 x 800 mm2000 x 950 x 800 mm2500 x 950 x 800 mm
Front Sash Max Opening (mm)720 mm / 28.3″720 mm / 28.3″720 mm / 28.3″720 mm / 28.3″720 mm / 28.3″
Front Sash Working Height (mm)500 mm500 mm500 mm500 mm500 mm
CertificationEN - 14175/ASHRAE 110-1995EN - 14175/ASHRAE 110-1995EN - 14175/ASHRAE 110-1995EN - 14175/ASHRAE 110-1995EN - 14175/ASHRAE 110-1995
Air Velocity0.5±0.1 m/s, 100±20 FPM0.5±0.1 m/s, 100±20 FPM0.5±0.1 m/s, 100±20 FPM0.5±0.1 m/s, 100±20 FPM0.5±0.1 m/s, 100±20 FPM
Cabinet MaterialWhite PolypropyleneWhite PolypropyleneWhite PolypropyleneWhite PolypropyleneWhite Polypropylene
Work Table MaterialHPL/Ceramic/Epoxy/Polypropylene/Stainless SteelHPL/Ceramic/Epoxy/Polypropylene/Stainless SteelHPL/Ceramic/Epoxy/Polypropylene/Stainless SteelHPL/Ceramic/Epoxy/Polypropylene/Stainless SteelHPL/Ceramic/Epoxy/Polypropylene/Stainless Steel
Control System7” colour touch-screen with air velocity, low airflow alarms, fan control, calibration settings and energy-efficient Eco mode7” colour touch-screen with air velocity, low airflow alarms, fan control, calibration settings and energy-efficient Eco mode7” colour touch-screen with air velocity, low airflow alarms, fan control, calibration settings and energy-efficient Eco mode7” colour touch-screen with air velocity, low airflow alarms, fan control, calibration settings and energy-efficient Eco mode7” colour touch-screen with air velocity, low airflow alarms, fan control, calibration settings and energy-efficient Eco mode
Optional Control System9” full-colour touch screen with dynamic VAV controls9” full-colour touch screen with dynamic VAV controls9” full-colour touch screen with dynamic VAV controls9” full-colour touch screen with dynamic VAV controls9” full-colour touch screen with dynamic VAV controls
Power Supply Options110/220V, 50/60 Hz, includes a single-phase power supply. A three-phase power supply can be specially ordered110/220V, 50/60 Hz, includes a single-phase power supply. A three-phase power supply can be specially ordered110/220V, 50/60 Hz, includes a single-phase power supply. A three-phase power supply can be specially ordered110/220V, 50/60 Hz, includes a single-phase power supply. A three-phase power supply can be specially ordered110/220V, 50/60 Hz, includes a single-phase power supply. A three-phase power supply can be specially ordered
Illumination800 LUX LED lights800 LUX LED lights800 LUX LED lights800 LUX LED lights800 LUX LED lights
Customisation OptionsTaps: (water, gas nitrogen, vacuum, others), sinks, sumps, shelves, multi-sash, partitions, glove apertures, dimensions, storage, height adjustable stands, auto-dosing and pH monitoringTaps: (water, gas nitrogen, vacuum, others), sinks, sumps, shelves, multi-sash, partitions, glove apertures, dimensions, storage, height adjustable stands, auto-dosing and pH monitoringTaps: (water, gas nitrogen, vacuum, others), sinks, sumps, shelves, multi-sash, partitions, glove apertures, dimensions, storage, height adjustable stands, auto-dosing and pH monitoringTaps: (water, gas nitrogen, vacuum, others), sinks, sumps, shelves, multi-sash, partitions, glove apertures, dimensions, storage, height adjustable stands, auto-dosing and pH monitoringTaps: (water, gas nitrogen, vacuum, others), sinks, sumps, shelves, multi-sash, partitions, glove apertures, dimensions, storage, height adjustable stands, auto-dosing and pH monitoring
Scrubbed Fume Cupboard Datasheet
Fume Cupboard Material Types
Five Things to Consider Before Purchasing a Ducted Fume Cupboard
Fume Cupboard Service Package
A fume cupboard (or fume hood) is a piece of laboratory equipment designed to contain gases, particulates and vapours from being airborne. A scrubbed fume cupboard (also called a wet scrubber fume cupboard) reduces chemical emissions by cleaning polluted air before it's exhausted into the atmosphere.
A scrubbed fume cupboard works by capturing chemical vapours using a fine media mist within the airstream before neutralising the substance inside a treated recirculation tank. This air is then exhausted into the atmosphere using a ventilation stack connected to the building.
Wet-Scrubber Fume Cupboards neutralise toxic vapours from the airstream before exhausting them into the environment. Wash-Down Fume Cupboards prevent Perchloric acid crystallisation using water jets fitted behind the rear baffle plate and the first section of ducting. TION specialise in both cabinet types, with each range support by a team of qualified engineers.
No. Although scrubbed fume cupboards are designed for use with strong, acidic chemicals, there are some exceptions. For example, Perchloric acid vapours can crystallise inside the unit or duct when dry. In this instance, we would only recommend a wash-down fume cupboard.

Tion are happy to advise you on any chemicals you may be using, and the impact they may have on your future fume cupboard use.

A scrubbed fume cupboard can take between three to seven days (or longer) to install, depending on the complexity of your project and whether the cupboard is ducted or not. This time varies because we need to consider your ventilation requirements, building specifications and make-up air. However, you can expedite this process if you have a thorough specification brief detailing your needs.
Scrubbed fume cupboards typically cost between £11,000 to £20,000, depending on the specification and size of the unit. Unlike traditional mild steel fume hoods that rust and corrode easily, we manufacture our products using corrosion-proof polypropylene. This material extends the average lifespan of our products by up to 10 years, thus saving you money considerably in the long term.
